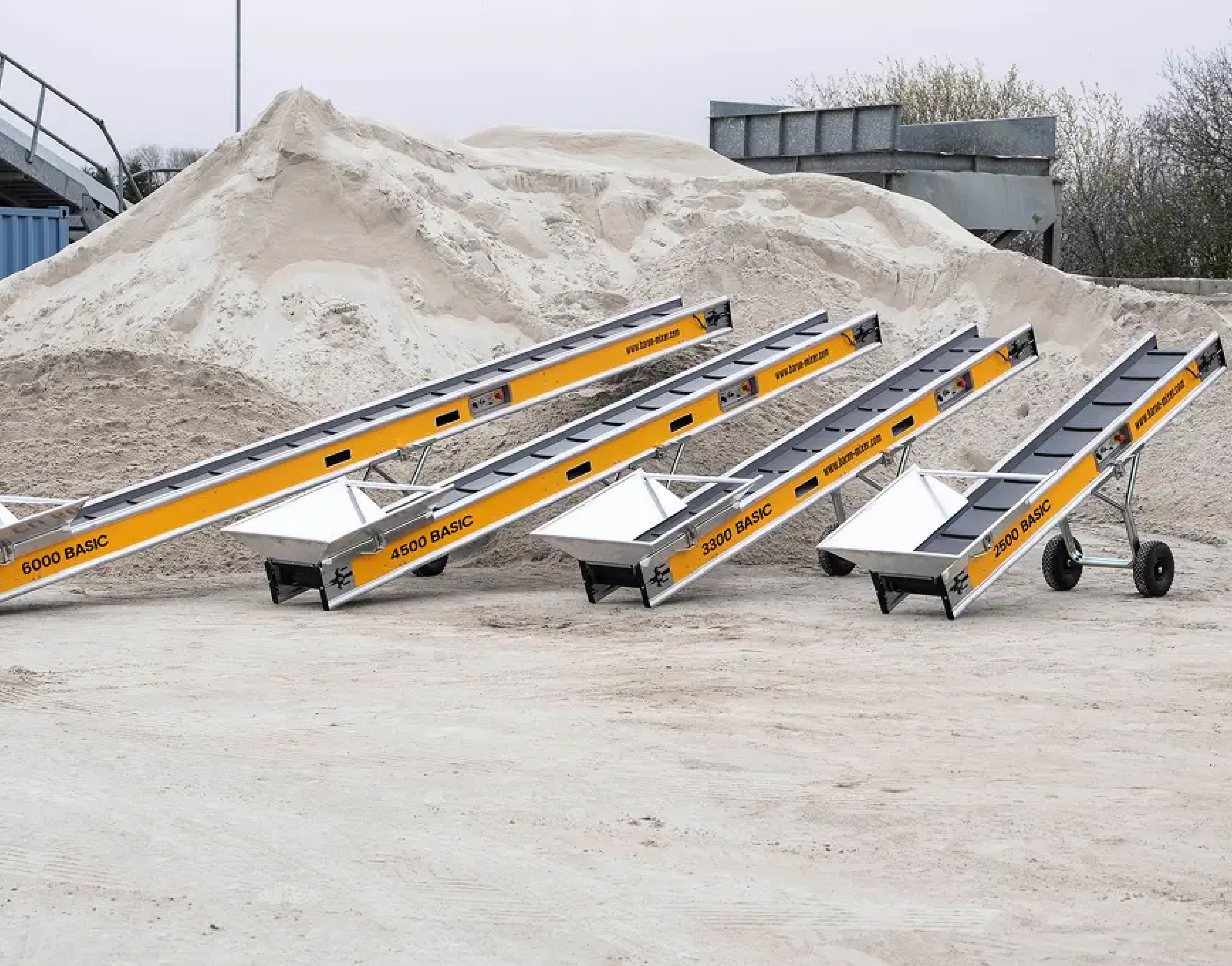

The Baron 2500 Basic conveyor is hard-wearing and can be used for all types of materials from demolition debris to wet mortar and soil. The closed side profile provides an extremely high load capacity while offering a maximum degree of safety. The conveyor is shown with the feeding box and undercarriage, which must be bought separately. Forward, backwards, variable speed, and series connection.
At Baron, you can choose between two series: BASIC and CONNECT. If you need a conveyor that does not need to be connected in series, you should go with the Basic conveyor. If you need a conveyor belt that can be connected - and act as a MASTER/SLAVE in a series connection, then you need a CONNECT conveyor.
Product Code:
- Extremely high load capacity and durability at a low maintenance costs
- High pulling power
- Hard-wearing PVC belt
- Easy belt adjustment
- Superb quality and finish
- Closed side profile
- Extremely safe and easy to clean
- All electrical parts are rated IP54
- Tolerates high-pressure cleaning
- Electrical parts securely housed
- Forklift brackets
- Fully-welded aluminium construction
- Low weight and stackable
- Long product life
- Tolerates heavy us and handling, and strong undercarriage
- Able to transport all types of materials
- Length - 280 cm
- Motor - 550 watt
- Width - 45 cm
- Engine - 3-phased 0.55kW
- Height - 25 cm
- Weight - 61 kg
- Current - 1x110V
- Belt speed (cm/s) - 20-80
- Belt Width - 34 cm
- Belt Length - 250 cm
- Max. pullpower - 200 kg
- workindependent - Yes
- Series connection - No
- Standard carrier on belt - 12.0000
- Variable belt speed - 20 to 80 cm/s
Please Note: Drawing may differ to New Zealand specifications
