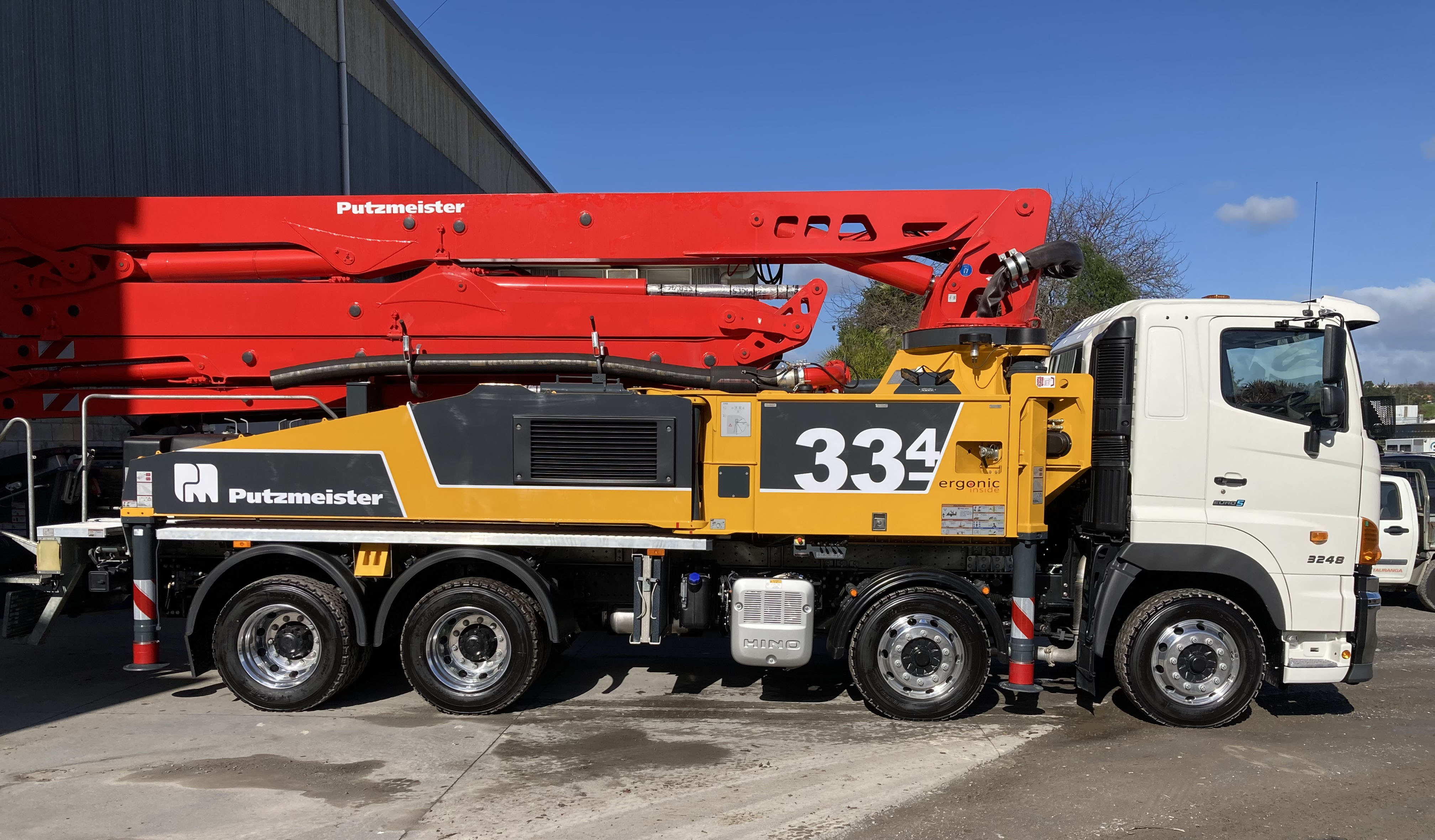

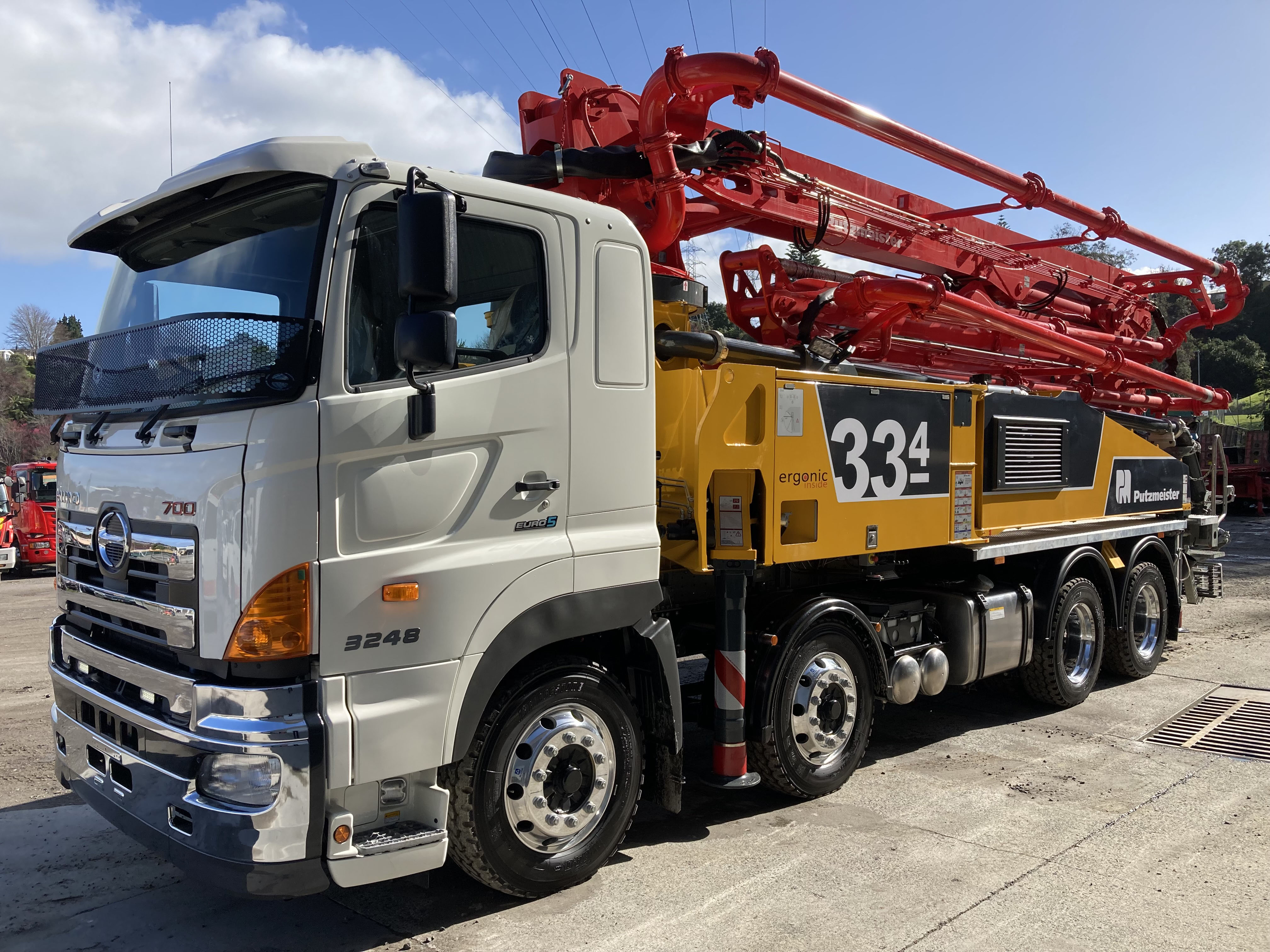

Putzmeister M 33-4 Truck Mounted Concrete Pump

Putzmeister M 33-4 Truck Mounted Concrete Pump

Please Note: Drawing may differ to New Zealand specifications

Overview

The Putzmeister 33-4 is an allrounder truck mounted concrete pump with a 32.1 m vertical reach.

‍

Uncomplicated maintenance is assured with high wear resistant components, maintenance-free components where possible and many standard components to save time and money. Putzmeister is committed to helping you place concrete faster, further, more efficiently and with greater accuracy.

Product Code:

WEB-M33-4
Enquire about this machine
Key Features

Automatic lubrication of the four-point bearing and A-hinge

Low unfolding height of 7.6m

  • Automatic lubrication of the four-point bearing and A-hinge
  • Low unfolding height of 7.6m
Technical Details

Boom M 33-4

‍

  • Sections - 4‍
  • Reach height -  32.1 m
  • Horizontal reach gross - 27.8 m
  • Horizontal reach net - 25.1 m
  • Reach depth max. - 20.2 m
  • Unfolding height - 7.6 m
  • End hose length - 4 m
  • Folding system - Z
  • Delivery line - DN 125

Pump BSF .16 H

‍

  • Rod side Output - 160 m³/h
  • Rod side Delivery pressure - 85 bar
  • Rod side Strokes - 31 per min.
  • Piston side Output - 108 m³/h
  • Piston side Delivery pressure - 130 bar
  • Piston side Strokes - 21 per min.
  • Delivery cylinder - 230 Ø mm
  • Stroke - 2100 mm
Downloadable Resource

Please Note: Drawing may differ to New Zealand specifications

Putzmeister M33-4 Data Sheet
