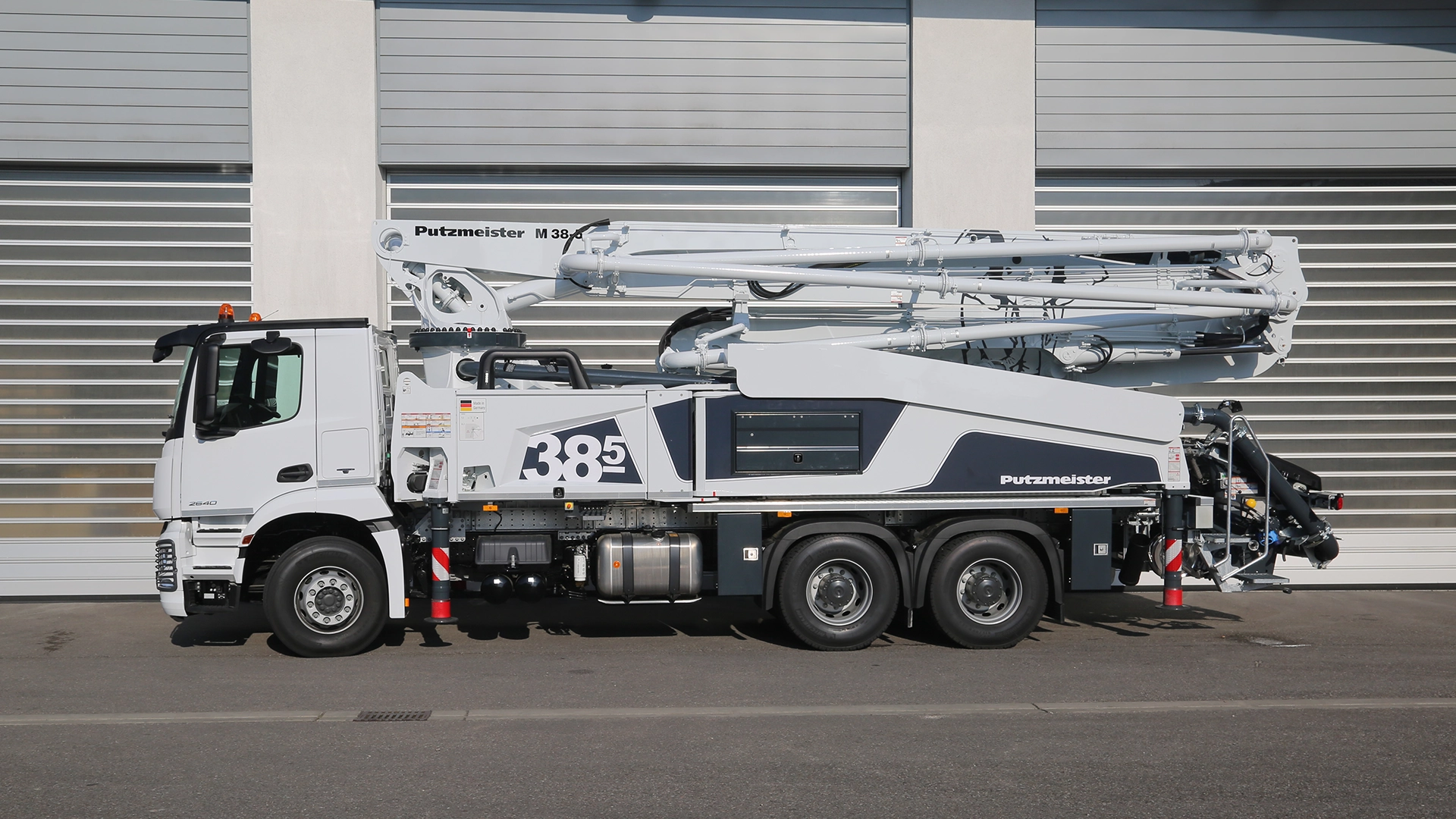

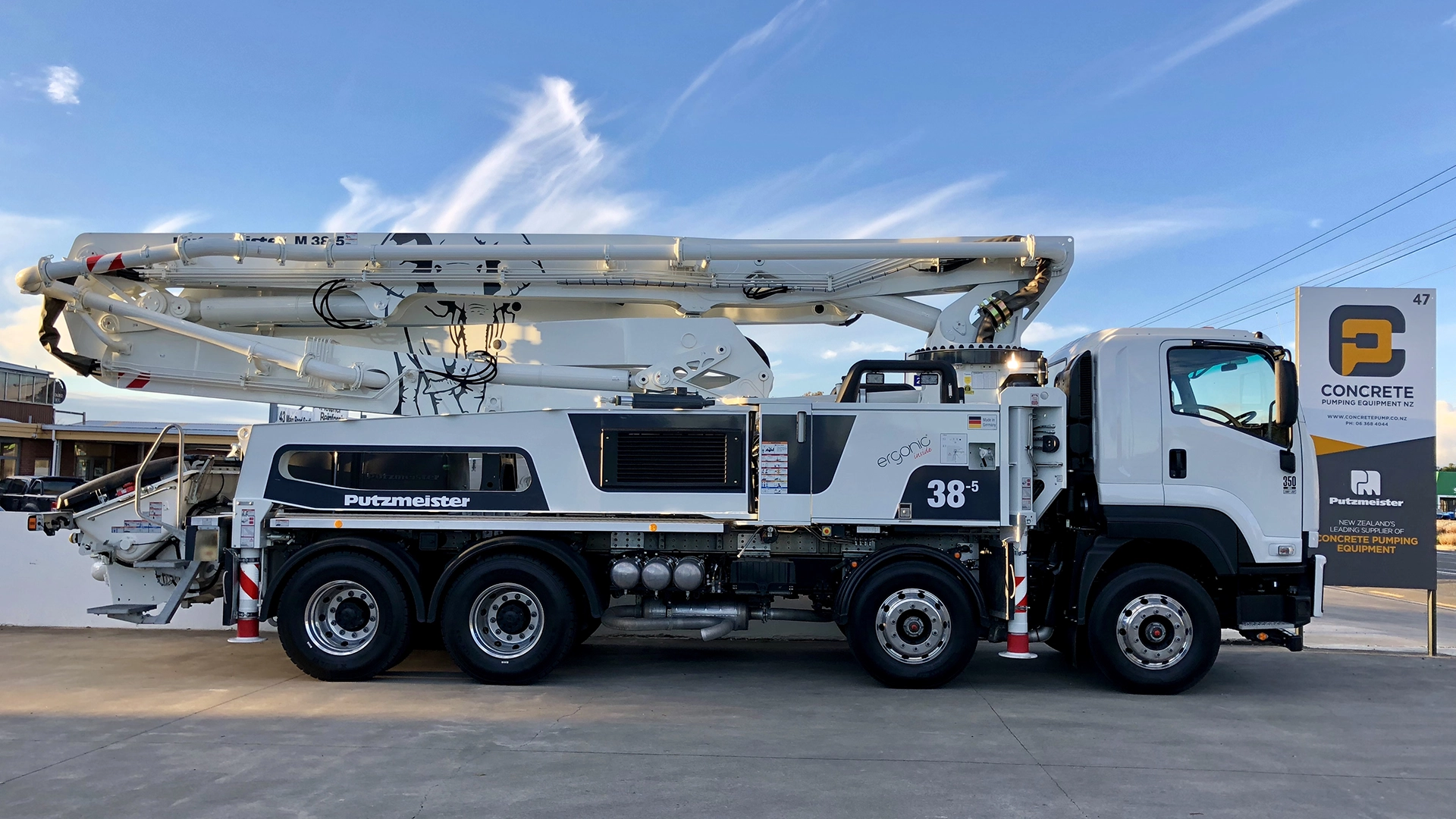

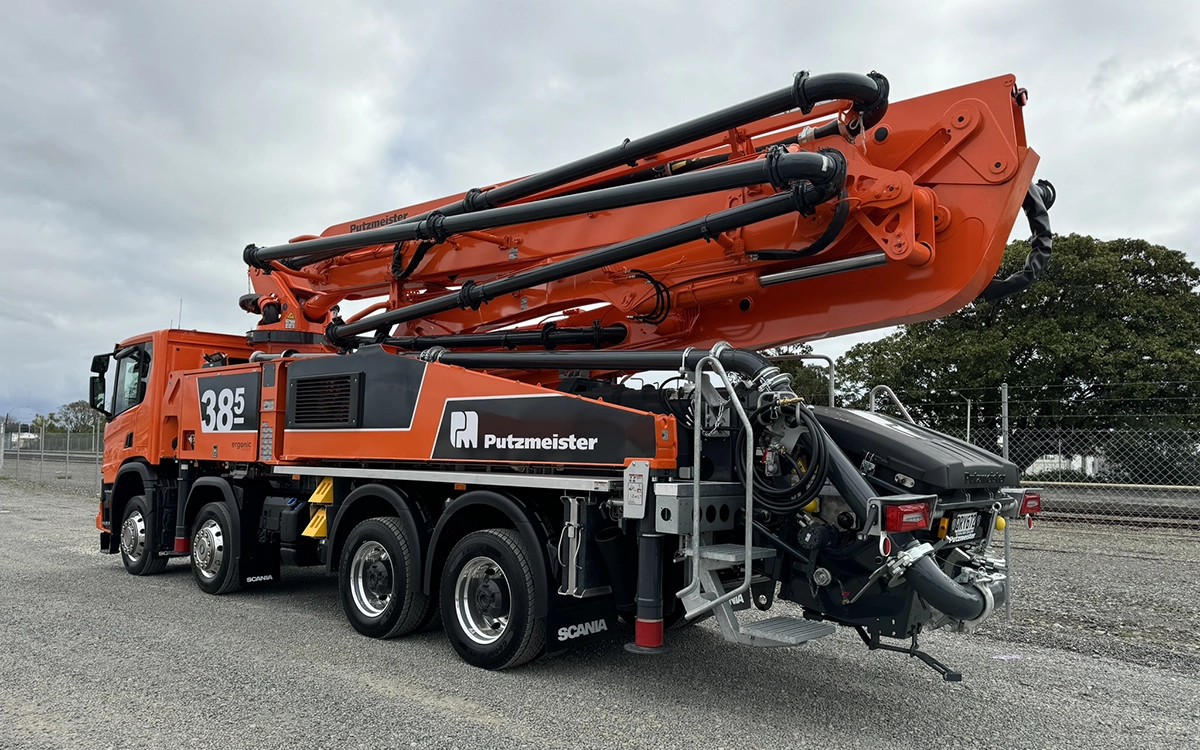

Putzmeister M 38-5 Truck Mounted Concrete Pump

Putzmeister M 38-5 Truck Mounted Concrete Pump

Please Note: Drawing may differ to New Zealand specifications

Overview

The Putzmeister BSF38-5 is the perfect truck-mounted concrete pump for medium to high-volume concrete pours. It can also be used for universal job sites. It is consistently efficient thanks to clever ergonomic design. It is also safer than before considering the current standards and guidelines. This truck mounted concrete pump can be mounted on Chassis of various manufacturers as well as on 3-axles and 4-axles chassis.

Product Code:

WEB-M38-5
Enquire about this machine
Key Features

A gross weight of less than 26 t incl. sufficient reserves for payload and operating materials

Steady 5-arm placing boom, thanks to intelligent laying of the delivery line and the harmonious development of the steel structure

Efficient work through consistently clever ergonomic design

Even better safety through closer consideration for current standards and guidelines

Service-friendly as a result of its optimised accessibility and consistent bolted concept

Lower service costs, thanks to maintenance-free components, fewer special components (e.g. only 2 standard delivery line bends) and lower volumes of operating materials (oil volume reduced by 30 %)

  • A gross weight of less than 26 t incl. sufficient reserves for payload and operating materials
  • Steady 5-arm placing boom, thanks to intelligent laying of the delivery line and the harmonious development of the steel structure
  • Efficient work through consistently clever ergonomic design
  • Even better safety through closer consideration for current standards and guidelines
  • Service-friendly as a result of its optimised accessibility and consistent bolted concept
  • Lower service costs, thanks to maintenance-free components, fewer special components (e.g. only 2 standard delivery line bends) and lower volumes of operating materials (oil volume reduced by 30 %)
Technical Details
  • Arms - 5
  • Folding Type - RZ
  • Vertical Reach - 37.5 m
  • Horizontal Reach gross - 32.8 m
  • Unfolding Height - 7.4 m
  • Slewing Range - 365 °
  • End Hose - Length - 4 m
  • Delivery Line - DN 125

‍

Pump BSF .16 H

‍

  • Delivery Cylinder Diameter - Stroke Length - 230/2100 mm
  • Output (rod side) - 160 m³/hr
  • Output (piston side) - 108 m³/hr
  • Delivery Pressure (rod side) - 85 bar
  • Strokes (rod side) - 31
Downloadable Resource

Please Note: Drawing may differ to New Zealand specifications

Putzmeister M 38-5 Brochure
Data Sheet / Specifications / Overview
Visit Putzmeister Website
