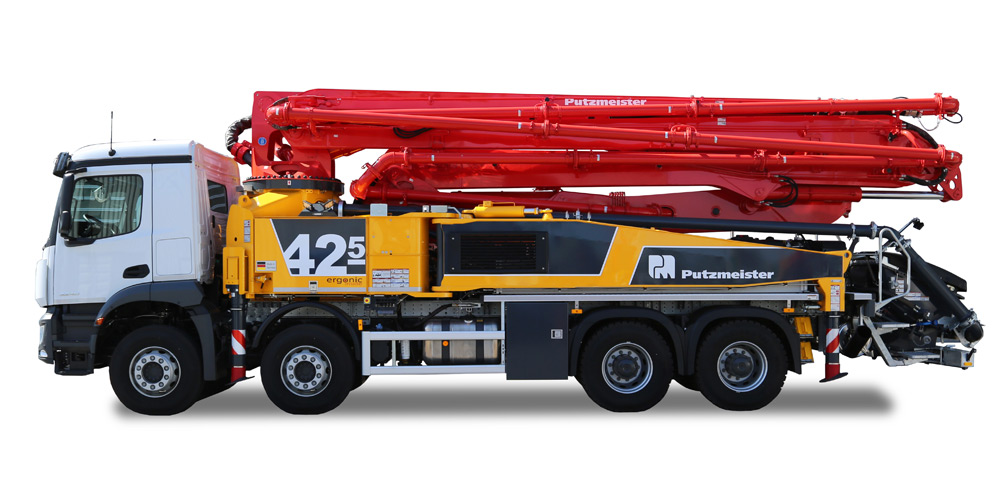

The next generation of the Putzmeister M42-5 truck-mounted concrete pump has improved maneuverability and weight indices for 4 axle chassis. The M42-5 is equipped with the OSS support system, which allows you to work in a limited workspace. The concrete pump length is less than 12 meters, and it weighs less than 32 tons (depending on vehicle and equipment).
Product Code:
WEB-M42-5
- Smooth 5-arm placing boom, thanks to intelligent laying of the delivery line and the balanced development of the steel structure
- Efficient work through consistently clever ergonomic design
- Even better safety through closer consideration for current standards and guidelines
- Service-friendly as a result of its optimised accessibility and consistent bolted concept
- Lower service costs thanks to maintenance-free components, fewer special components (only 3 standard delivery line bends) and lower volumes of functional fluids (oil volume reduced by 30 %)
- Vertical Reach - 41.6 m
- Horizontal Reach gross - 37.3 m
- Unfolding Height - 8.6 m
- Slewing Range - 365 °
- End Hose - Length- 4 m
- Delivery Line - DN 125
- Delivery Cylinder Diameter - Stroke Length - 230/2100 mm
- Output (rod side) - 160 m³/hr
- Output (piston side) - 108 m³/hr
- Delivery Pressure (rod side) - 85 bar
- Strokes (rod side) - 31
Please Note: Drawing may differ to New Zealand specifications
