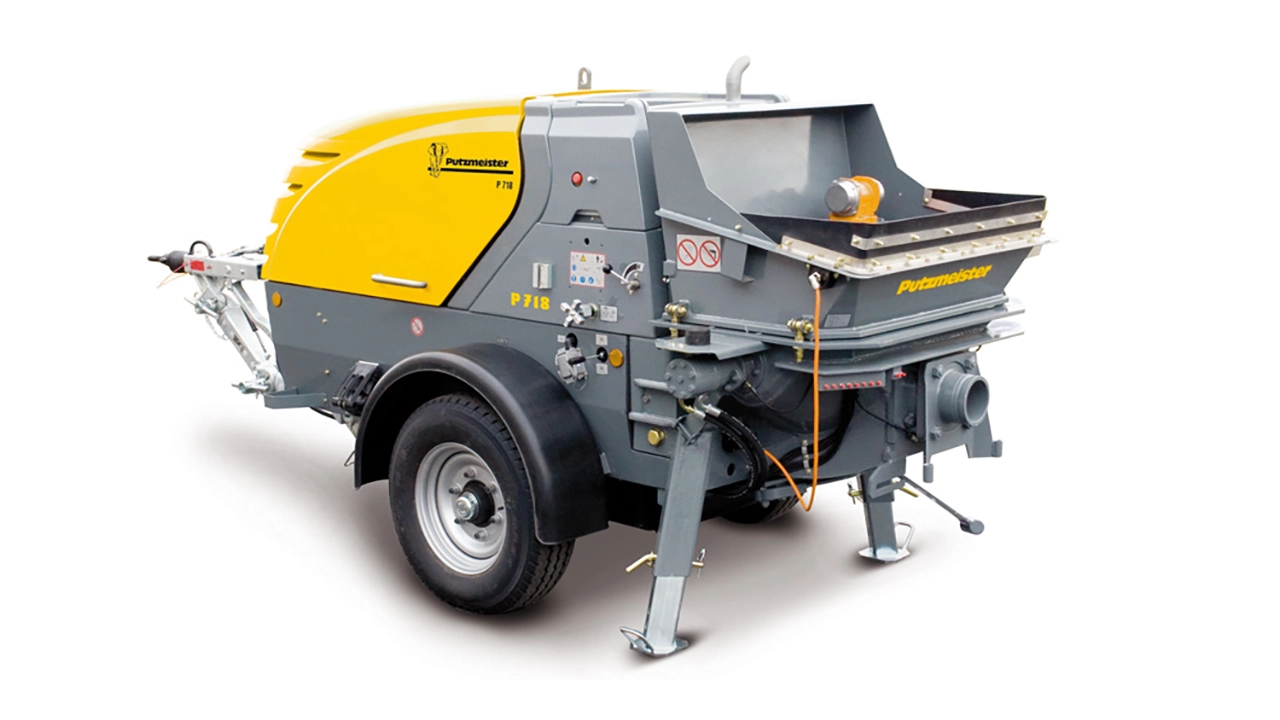

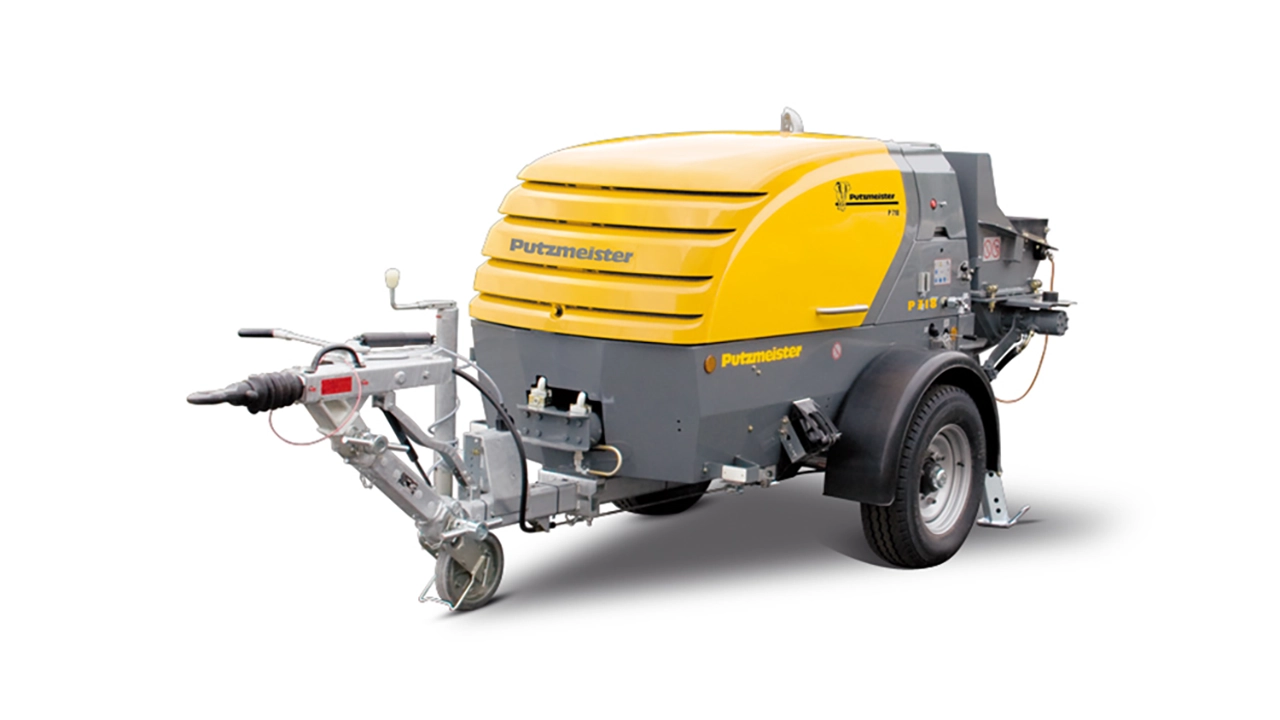

Putzmeister P 718 TD Concrete Trailer Pump

Putzmeister P 718 TD Concrete Trailer Pump

Overview

The P 718 TD piston pump is ideally suited for conveying fine concrete up to a grain size of 32 mm and for working with shotcrete. It is the most powerful machine of this kind to date – it boasts impressive performance data and is lightweight with a well thought-out and user-friendly design.

Product Code:

WEB-P718TD
Key Features

Powerful 3-cylinder Deutz diesel engine compliant with the current COM III exhaust specifications

2-cylinder piston pump with hard-chromed delivery cylinders

Large hopper 280 l with rubber collar and protective grid

Piston pump unit extremely robust

Chassis for road use

Supporting feet for secure stability

  • Powerful 3-cylinder Deutz diesel engine compliant with the current COM III exhaust specifications
  • 2-cylinder piston pump with hard-chromed delivery cylinders
  • Large hopper 280 l with rubber collar and protective grid
  • Piston pump unit extremely robust
  • Chassis for road use
  • Supporting feet for secure stability
Technical Details
  • Feed Hopper - 360 l
  • Output - 4-17.4 m³/hr
  • Delivery Pressure - 68 bar
  • Horizontal Reach gross - 300 m
  • Vertical Reach - 100 m
  • Pump - hydraulic , 2-cylinder
  • Strokes (piston side) - 27
  • Delivery Cylinder Diameter - Stroke Length - 150/700 mm
  • Max. Aggregate Size - 32 mm
  • Engine - 3-cylinder Deutz diesel
  • Engine Power - 34.5 kW
  • Length x Width x Height - 4644 x 1560 x 1790 mm
  • Weight - 2320 kg
Downloadable Resource

Please Note: Drawing may differ to New Zealand specifications
