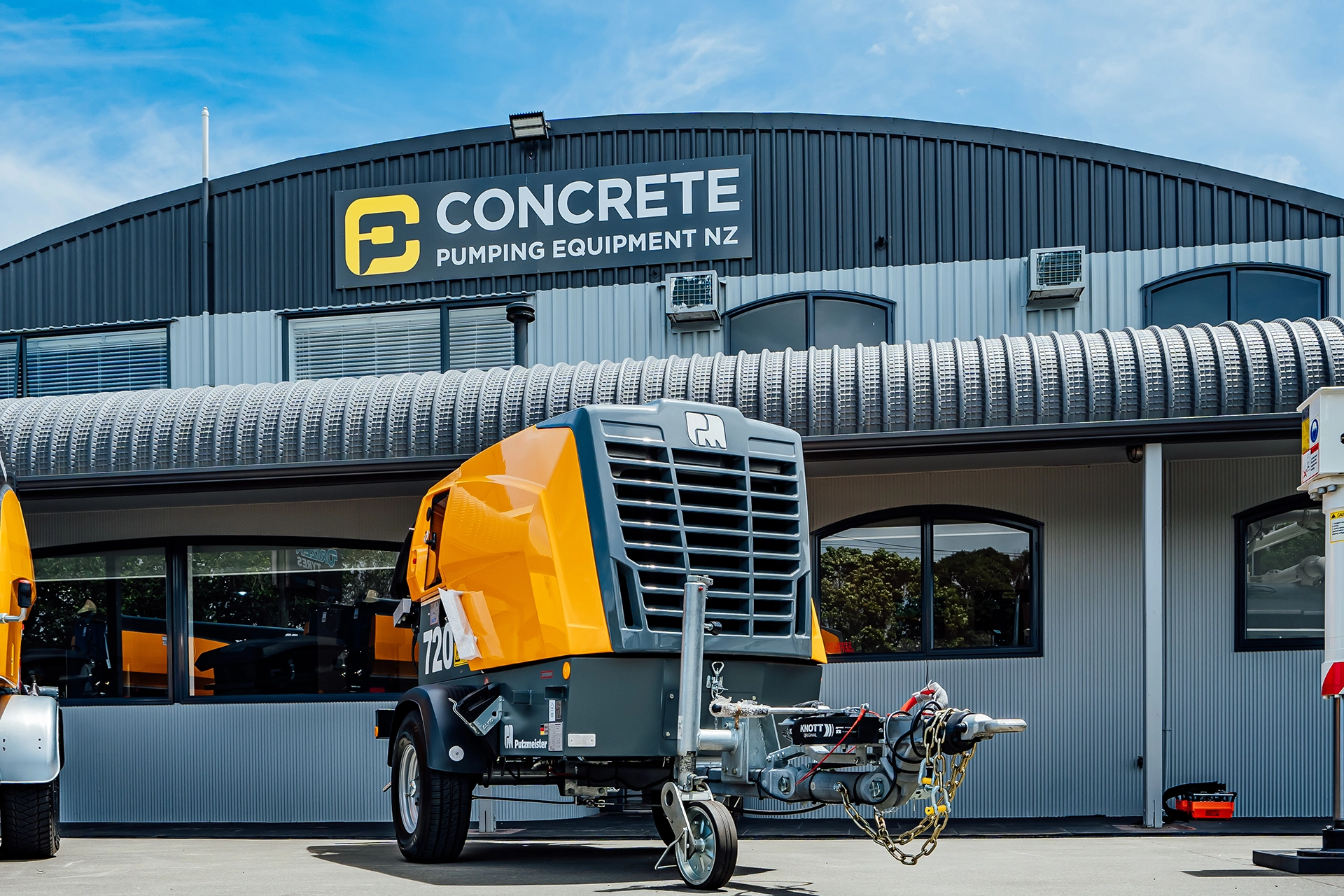

The P 720 reliably conveys pumpable media with a grain size of up to 16 mm across large distances. The powerful piston pump is ideal for applications with shotcrete and self-levelling floor screed. With a delivery pressure of up to 80 bar and an output of 21 m³/h, it is a true all-rounder boasting small dimensions and low weight.
Product Code:
WEB-P720

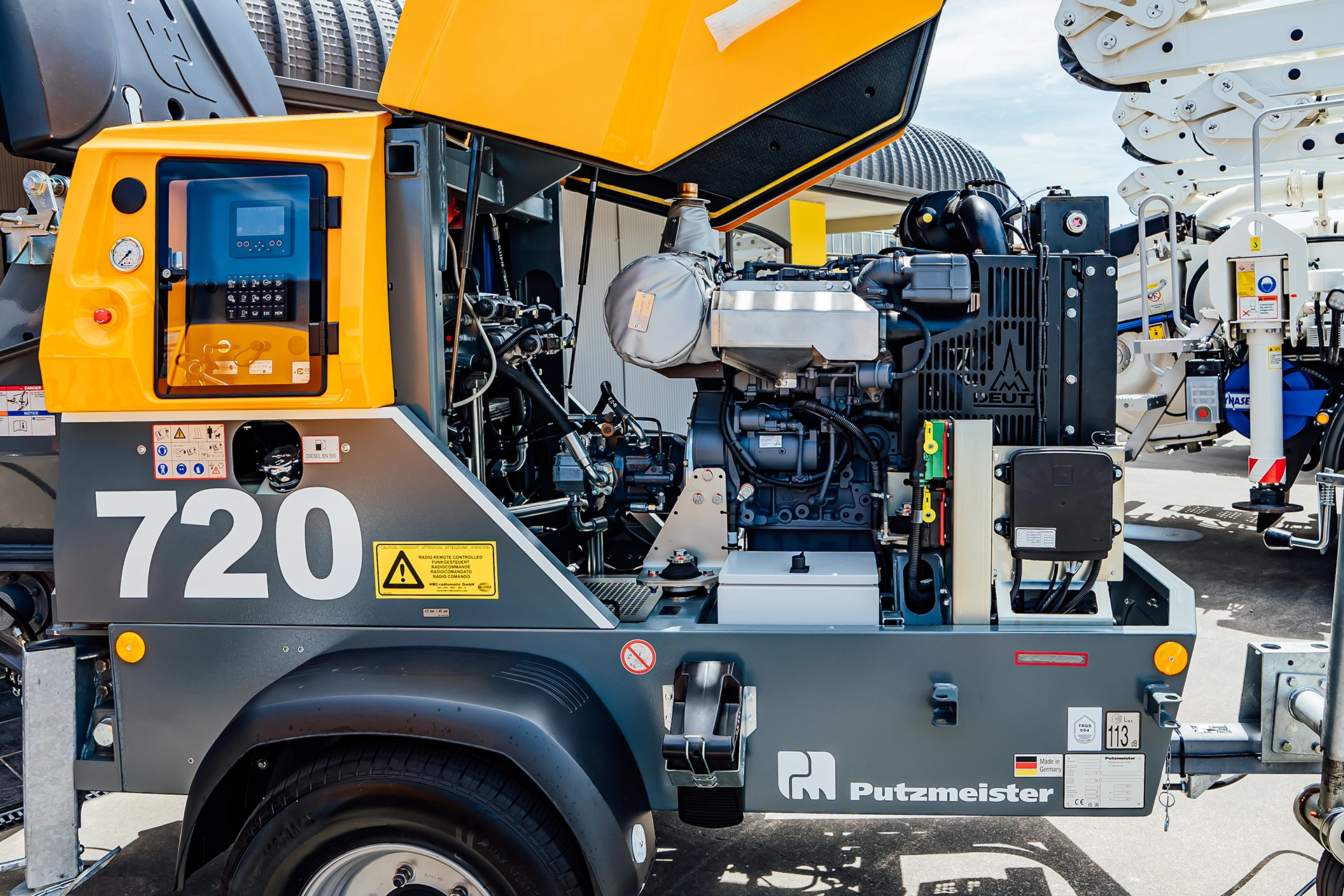

- Brand-new engine technology – clean and efficient. Meets all requirements of the applicable “Stage V” emissions standard
- New and ergonomic central control unit with intuitive keypad on the right side of the machine
- Optimised fuel consumption with Ergonic® Output Control (EOC)
- Large hopper (280 l) with rubber collar and protective grille
- Comprehensive standard equipment
- Extremely robust piston pump unit
- The lightest fine-concrete pump of its class with less than 1900 kg
- Support feet to ensure stability
- Improved accessibility for maintenance points and reduced service requirements when using maintenance-free components
- Made in Germany
- Feed Hopper - 250 l / 280 l (with rubber collar)
- Output - 3-21 m³/hr
- Delivery Pressure - 80 bar
- Horizontal Reach gross - 300 m
- Vertical Reach - 100 m
- Drive - 3-cylinder Deutz diesel engine with turbocharging kW
- Engine Power - 44.5 kW
- Pump - 2-cylinder pump, hydraulic
- Strokes - 29
- Delivery Cylinder Diameter / Stroke Length - 150/700 mm
- Pressure Connection - 4.5 "
- Weight - 2050 (TD) kg
- Length x Width x Height - 4800 mm x 1491 mm x 1916 mm (TD)
- Filling Height - 1324 mm (TD)
- Max. Aggregate Size - 16 mm
- Chassis - Trailer (TD), Stationary (SD)
Please Note: Drawing may differ to New Zealand specifications
