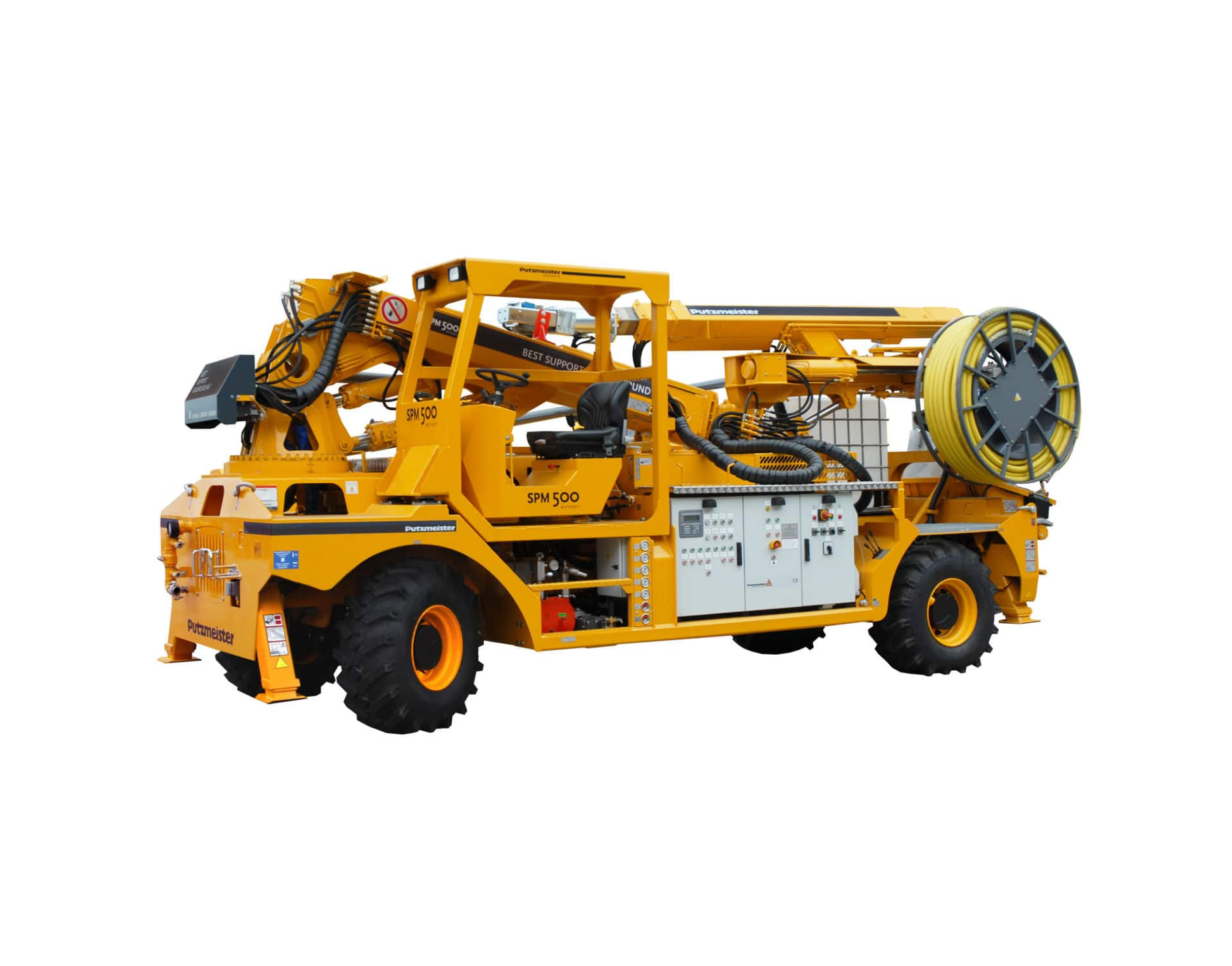

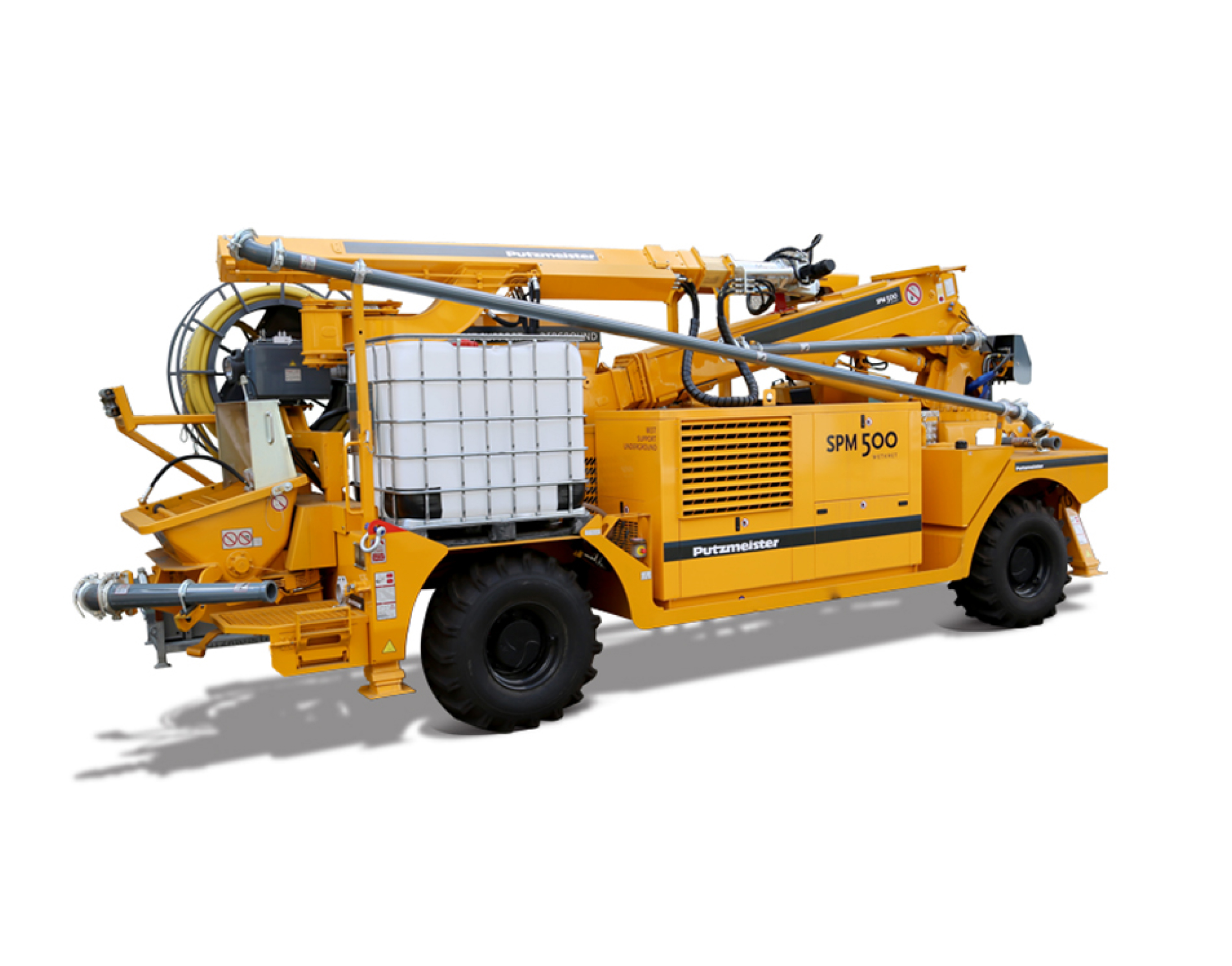

Putzmeister SPM-500 Shotcrete Robot

Putzmeister SPM-500 Shotcrete Robot

Please Note: Drawing may differ to New Zealand specifications

Overview

The SPM 500 Wetkret has proven it's efficiency and reliability in a large number of tunneling projects all over the world.

‍

With a vertical spraying reach of 17 m and an output of 30 m³/h, this machine is ideal for medium and large tunnels, caverns and slopes. The automatic system for high precision synchronization between the concrete pump and the additive dosing unit maintains the additive dosage proportional to the output, assure spraying accuracy and quality.

‍

All functions are available via remote control. The sturdy chassis with 4-wheel-drive and crab-mode provides maneuverability in difficult driving situations. The standard version of the SPM 500 WETKRET series is operated electrically and includes an electric air compressor built into the chassis. The equipment is also optionally available with a diesel drive system, allowing operation in places without electrical power supply.

‍

‍

Product Code:

WEB-SAPM500
Enquire about this machine
Key Features

Far reaching: spraying arm providing 17 m spraying reach

Automatic additive dosage: automatic dosing device proportional to the concrete flow, ensuring spraying accuracy and quality

All functions available via remote control: automatic spraying sequence start and stop functions, full regulation of the concrete output

Easy handling: thanks to the automatic spray lance movements and nozzle oscillation

Advanced maneuverability: compact dimensions, four driving and steering wheels

‍

Spraying arm can be unfolded in minimum space thanks to movable and telescopic construction

Optionally available with an electric air compressor built into the chassis

  • Far reaching: spraying arm providing 17 m spraying reach
  • Automatic additive dosage: automatic dosing device proportional to the concrete flow, ensuring spraying accuracy and quality
  • All functions available via remote control: automatic spraying sequence start and stop functions, full regulation of the concrete output
  • Easy handling: thanks to the automatic spray lance movements and nozzle oscillation
  • Advanced maneuverability: compact dimensions, four driving and steering wheels
  • Spraying arm can be unfolded in minimum space thanks to movable and telescopic construction
  • Optionally available with an electric air compressor built into the chassis
Technical Details
  • Length x Width x Height - 7850 x 2400 x 3000 mm
  • Weight - 16000 kg
  • Ground Clearance - 330 mm
  • Wheelbase - 4450 mm
  • Max. Longitudinal Gradient while Driving - 35 %
  • Max. Transversal Gradient while Driving - 10 %
  • Inner Turning Radius - 2628 mm
  • Outer Turning Radius - 6370 mm
  • Drive System Electric - 55 kW
  • Engine - Diesel
  • Engine Power - 70/2200 rpm kW
  • Emission Stage - EU-Stage IIIA A / EPA-Tier 3
  • Max. Speed - 20 km/hr
  • Diesel Tank - 150 l
  • Additive Pump Adjustment Range - 30-700 l/hr
  • Additive Pump Pressure - 10.5 bar
  • Additive Tank - 1000 l
  • Control System - PLC
Downloadable Resource

Please Note: Drawing may differ to New Zealand specifications

SPM-500 BROCHURE
SPM-500 DATA SHEET
Visit Putzmeister Website
