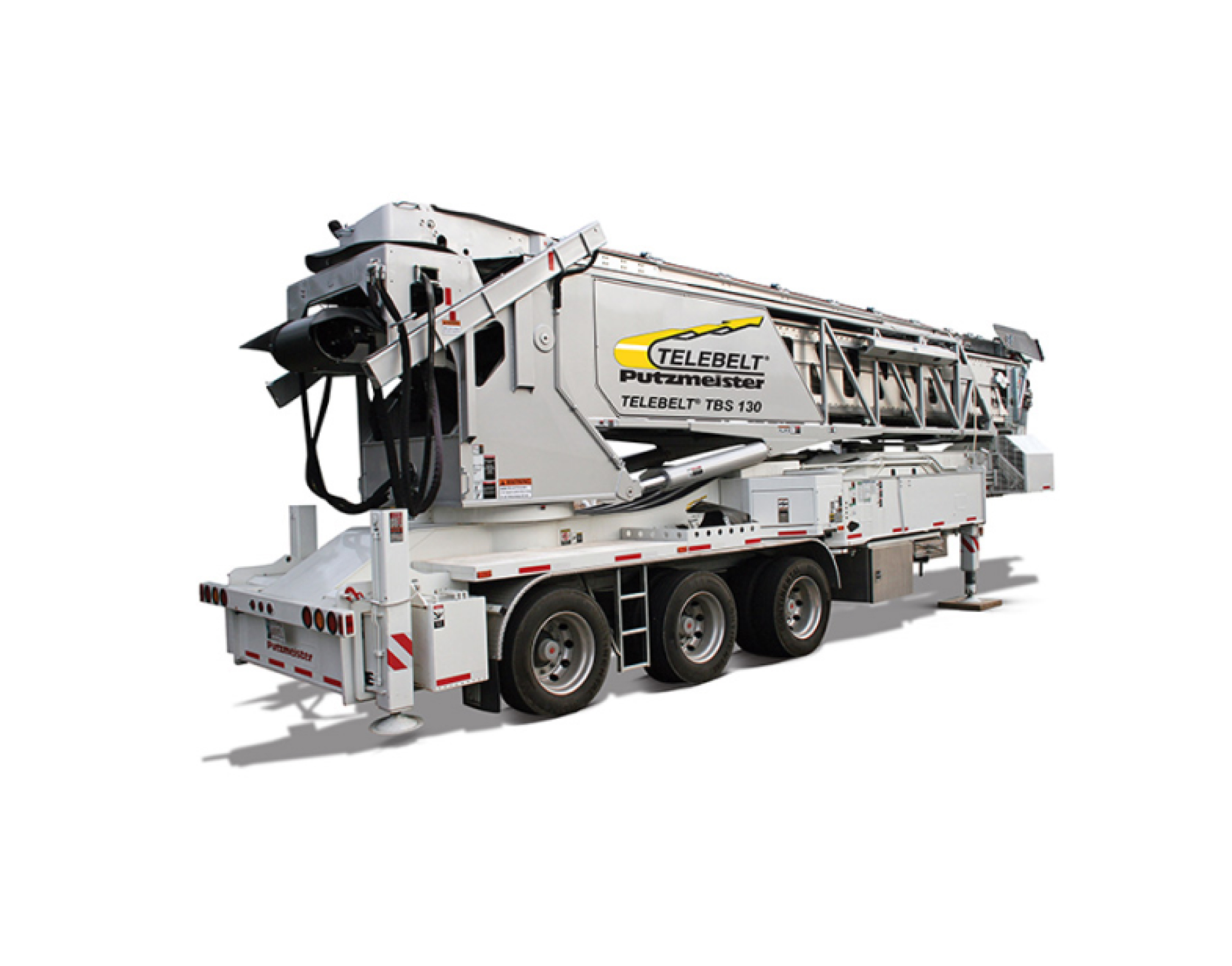

Putzmeister TBS130 Telebelt

Putzmeister TBS130 Telebelt

Please Note: Drawing may differ to New Zealand specifications

Overview

You get unmatched versatility from the 5th wheel configuration of the Putzmeister Telebelt® TBS 130. Greater mobility, tighter turning radius, reduced axle loads and a reduced footprint will come in handy on any job site. It delivers up to 275 m³ per hour with a horizontal reach of 38.47 m.

You can specify the type of chassis and the trailer axle configuration to meet your local requirements.

Product Code:

WEB-TBS130
Key Features

5th wheel configuration for mobility, tighter turning radius, and reduced axle loads

Six hopper options for different job needs

Low unfolding heights

Telescoping boom

Ideal for mass concrete placement

  • 5th wheel configuration for mobility, tighter turning radius, and reduced axle loads
  • Six hoper options for different job needs
  • Low unfolding heights
  • Telescoping boom
  • Ideal for mass concrete placement
Technical Details
  • Arms - 5
  • Conveyor Horizontal Reach - 38.47 m
  • Conveyor Horizontal Reach - 33.74 m
  • Conveyor Belt Width - 457 mm
  • Feed Conveyor Length - 11.60 m
  • Feed Conveyor Belt Width - 457 mm
  • End Hose - Length - 4.57 m
  • Discharge height from grade - 20.48 m
  • Discharge height from grade - 8.14 m
  • Rated capacity main and feed conveyors by minute - 4 m³/min
  • Rated capacity main and feed conveyors by minute - 4 m³/min
  • Slewing Range - 360°
  • Horizontal Reach net - 36.70 m
  • Horizontal Reach net - 31.97 m
  • Outrigger spread - hydraulically rotate out and down (front-rear) - 8.56 / 8.10 m
  • Outrigger load: Front-Rear - 234 / 206 kN
  • Weight - 36390 kg
  • Engine - Deutz TCD2012 (Caterpillar C6.6 ACERT optional)
  • Engine Power - 155 kW
Downloadable Resource

Please Note: Drawing may differ to New Zealand specifications
