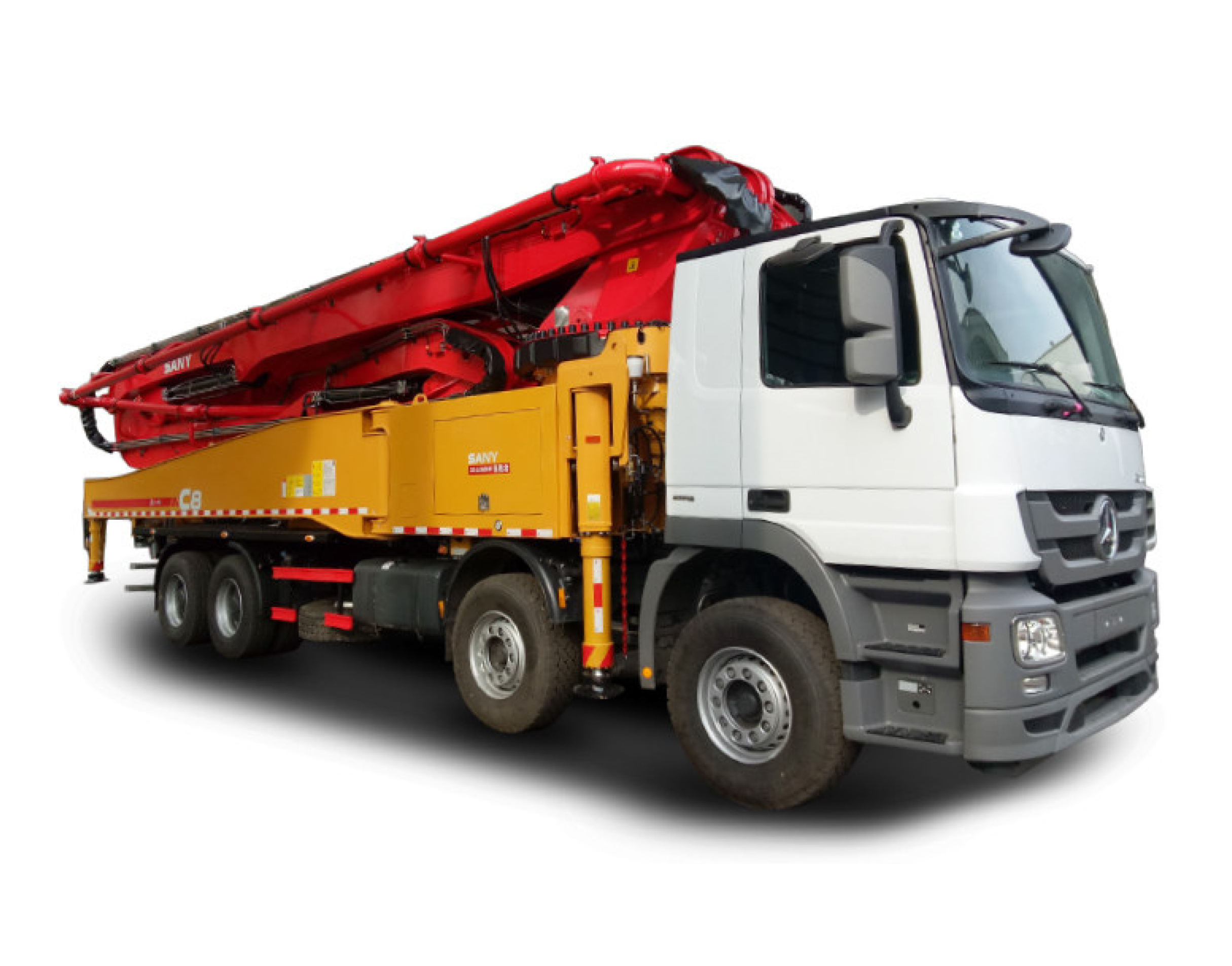

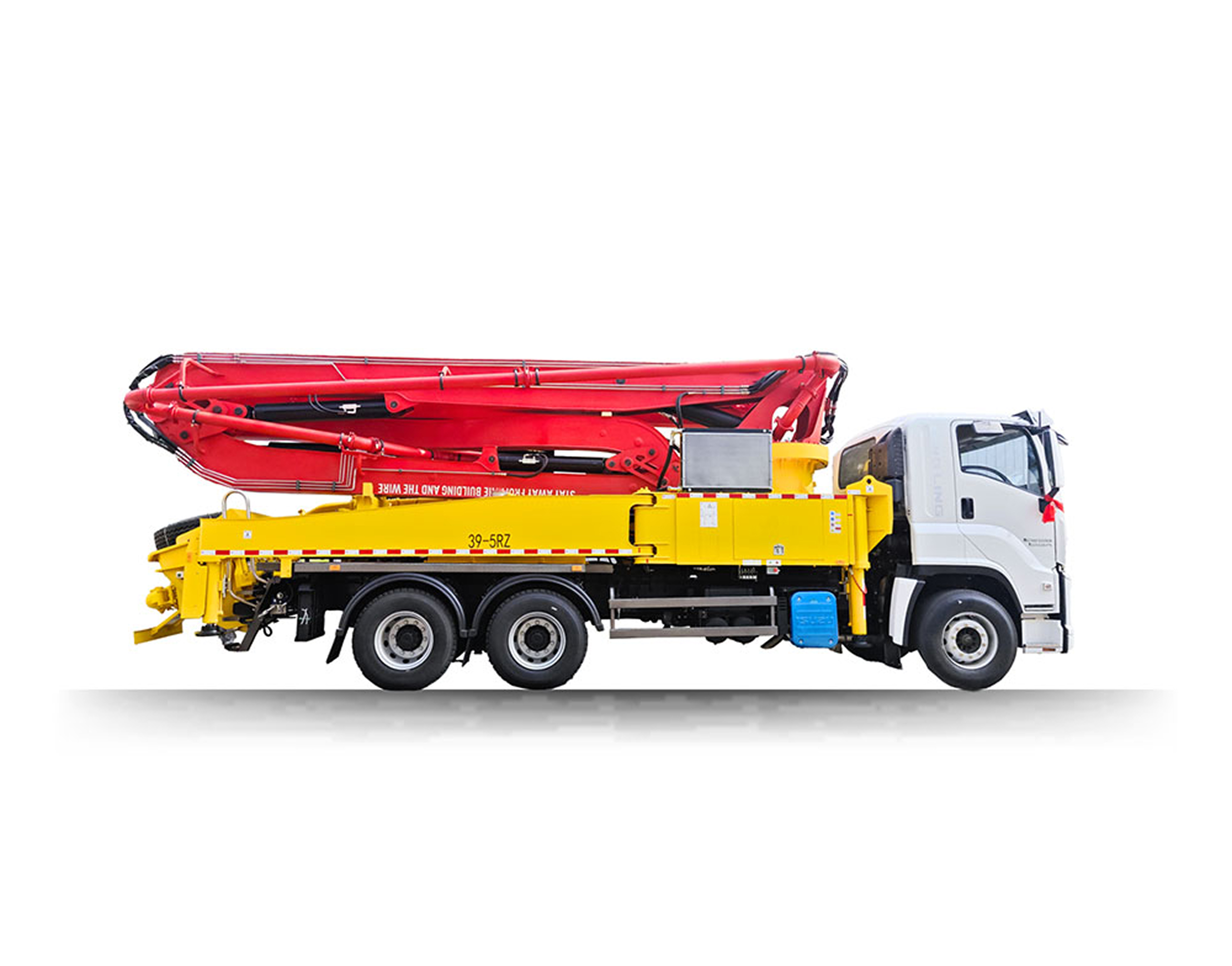

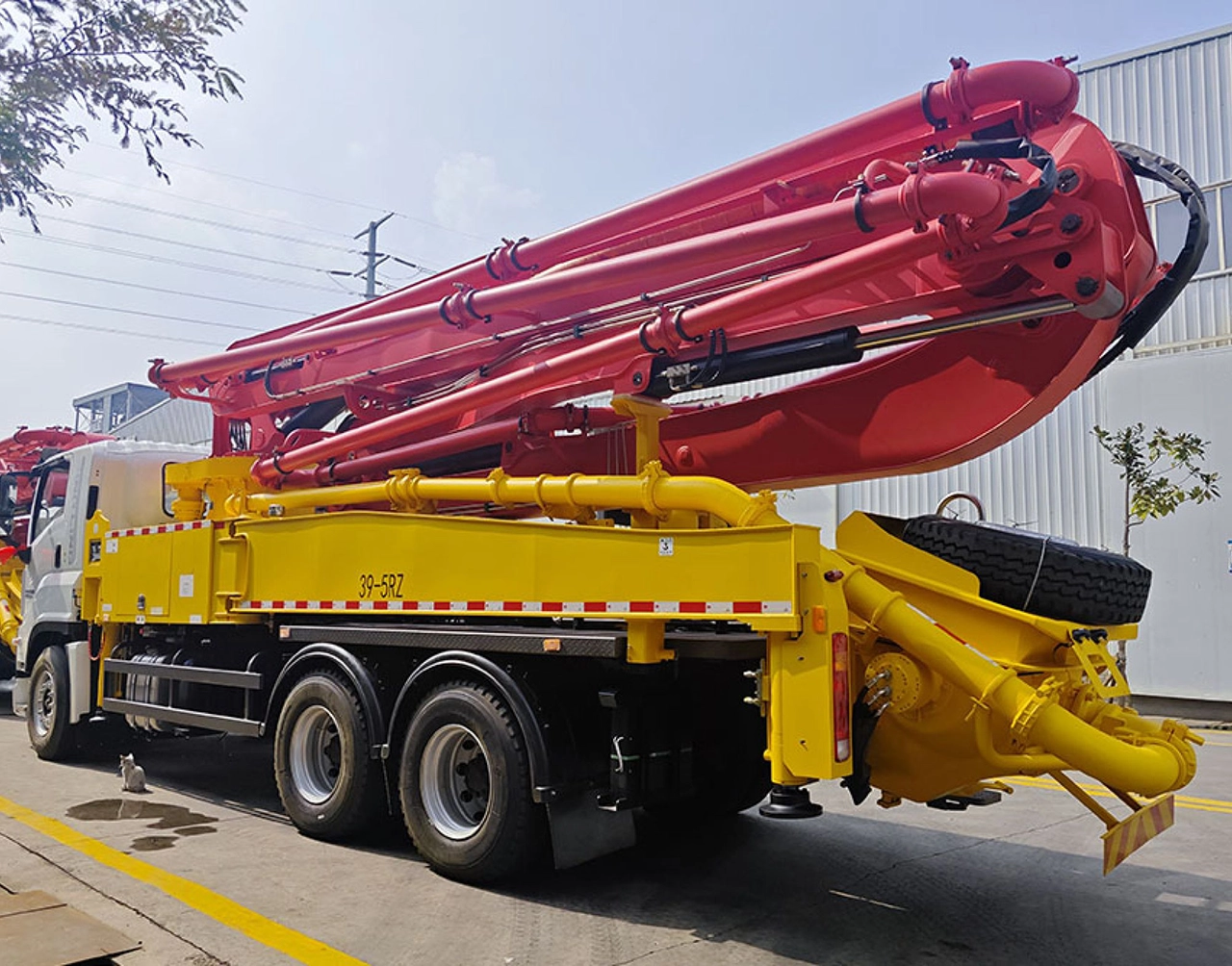

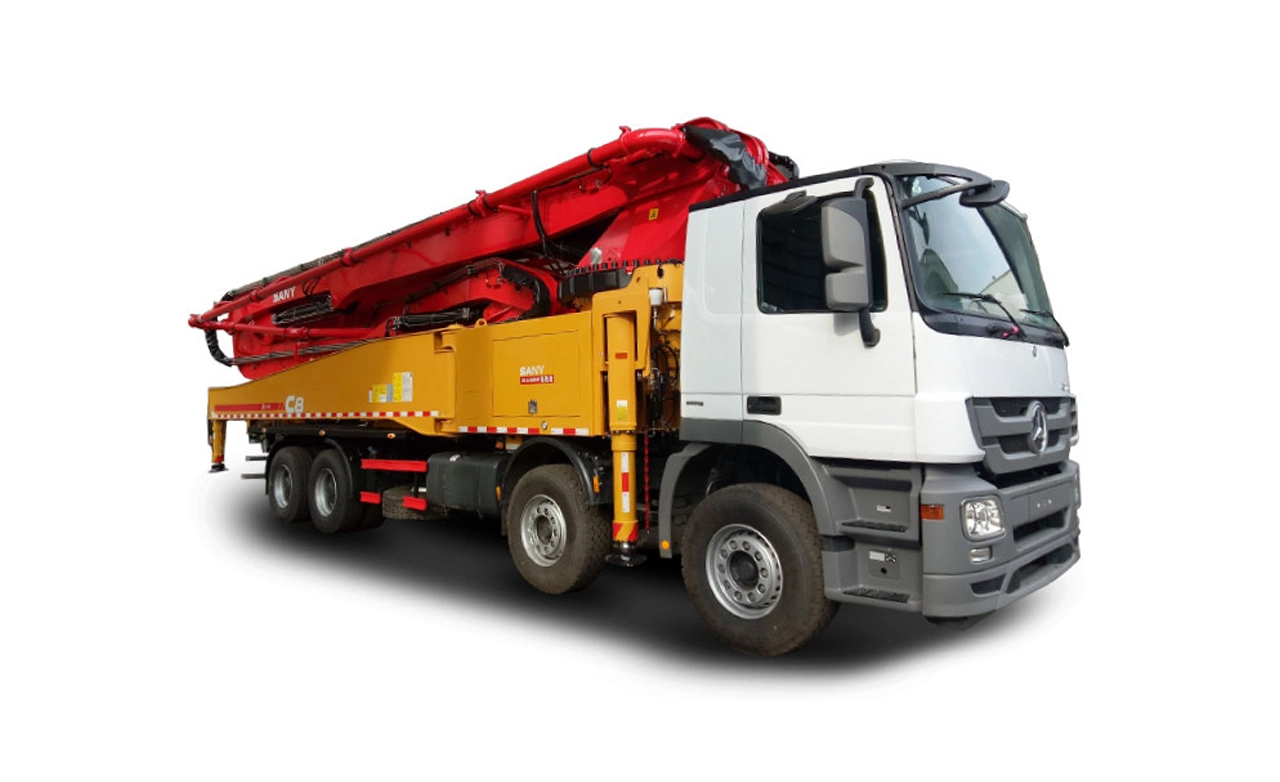

Sany 39M Truck-Mounted Concrete Pump

Sany 39M Truck-Mounted Concrete Pump

Please Note: Drawing may differ to New Zealand specifications

Overview

SANY truck-mounted concrete pumps have a heavy-duty design with a simple user interface, which includes an intuitive HBC wireless remote.

‍

SANY pumps adopt a range of core technologies to ensure smooth pumping and safe operation. These include 700-degree boom rotation, energy saving, fault self-diagnosis, safety, smart boom system and highly wear resistant parts. Fine production, rigorous tests and reliable components of world-renowned brands guarantee a long service life for your SANY concrete pump.

‍

Product Code:

WEB-SY39-RZ5-165
Enquire about this machine
Key Features

Water tank 600 l

Working light for illuminating hopper

OSS one side support (assistance device)

Vibrator on hopper grid

  • Water tank 600 l
  • Working light for illuminating hopper
  • OSS one side support (assistance device)
  • Vibrator on hopper grid
Technical Details
  • Folding System - 5-arm RZ
  • Vertical Reach - 38.1 m
  • Horizontal Reach - 33.4 m
  • Unfolding Height - 9.2 m
  • Delivery Cylinder Diameter - Stroke Length - 230/1900 mm
  • Output  - 163 m³/hr
  • Delivery Pressure  - 70 bar
  • Strokes / min  - 35
Downloadable Resource

Please Note: Drawing may differ to New Zealand specifications

Data Sheet SY39 Download
Visit Sany Website
